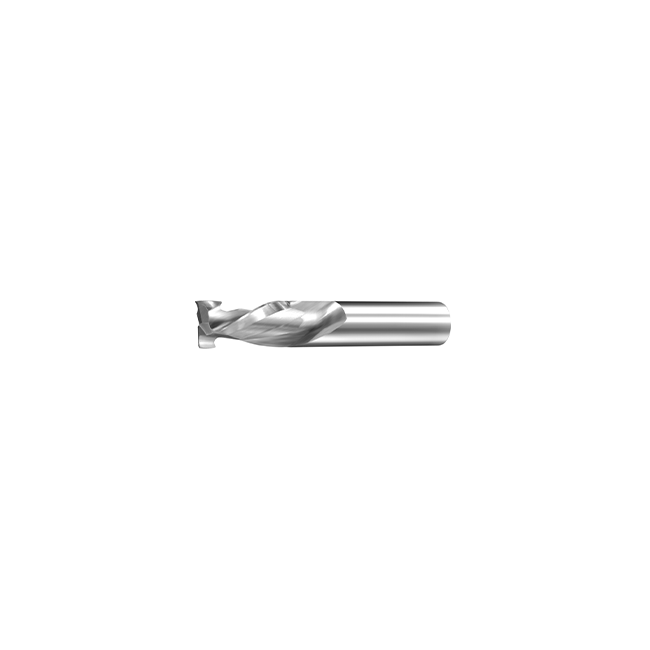

9/16" x 1" DE MORT VIPER

$165.25

Compression means the upcut and downcut spiral flutes compress the material being cut preventing chipping or fuzzing on the top and bottom of the cut. Our unique flute geometry allows the “Viper” to cut faster and longer than other compression spirals on the market today. It also allows for extended sharpening life with excellent performance throughout the tool’s useful life. Compression spirals are used extensively for cutting double-sided laminates (melamine, vinyl, high pressure laminates, painted board, etc.). This series of compression spirals is not recommended for cutting materials thinner than 5/8”.

Availability:

In stock

Details

More Information

More Information
SKU	3168
Cutting Edge Diameter (CED)	9/16
Cutting Edge Length (CEL)	1
Shank Diameter	1/2
Overall Length (OAL)	3
Upcut Length	0.250

Sku	Price	Cutting Edge Diameter (CED)	Cutting Edge Length (CEL)	Shank Diameter	Overall Length (OAL)	Upcut Length
3105	$84.41	6mm	22mm	6mm	64mm	0.1875
3112	$73.45	1/4	7/8	1/4	3	0.1875
3115	$71.57	1/4	5/8	1/4	2 1/2	0.1875
3115L	$90.61	1/4	5/8	1/4	2 1/2	0.1875
3120	$114.62	8mm	25mm	8mm	76mm	0.250
3140	$129.02	10mm	30mm	10mm	76mm	0.250
3154	$167.06	12mm	25mm	12mm	76mm	0.250
3184	$86.03	3/8	7/8	3/8	3	0.1875
3185	$86.03	3/8	7/8	3/8	3	0.250
3185L	$107.22	3/8	7/8	3/8	3	0.250
3187	$111.07	1/2	1	1/2	3	0.1875
3189	$111.07	1/2	1	1/2	3	0.250
3189L	$143.79	1/2	1	1/2	3	0.250
3188	$120.05	1/2	1 1/4	1/2	3 1/2	0.250
3190	$144.11	1/2	1 5/8	1/2	3 1/2	0.250
3190L	$177.00	1/2	1 5/8	1/2	3 1/2	0.250
3168	$165.25	9/16	1	1/2	3	0.250
3168L	$204.68	9/16	1	1/2	3	0.250
3193	$259.48	5/8	2	5/8	4	0.250
3198	$321.59	3/4	1 1/2	3/4	4	0.250
