SKU
5420L

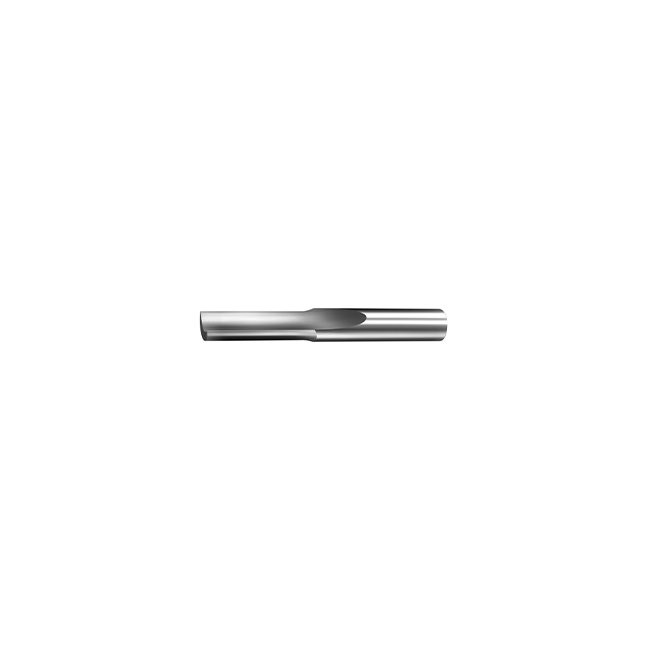

3/16" x 5/8" SE O'FLUTE LH
$32.97
(Left Hand Rotation)
“O” flute tools create the perfect curled chip that allows softer plastic to be cut without chip rewelding. Ideally suited for plastic materials that form curled chips as opposed to fractured chips. The straight flute design does not import “up” or “down” forces into the part being routed, making it ideal for irregularly shaped parts not capable of being thoroughly held in place by vacuum or fixturing.
Availability:
In stock
| SKU | 5420L |
|---|---|
| Cutting Edge Diameter (CED) | 3/16 |
| Cutting Edge Length (CEL) | 5/8 |
| Shank Diameter | 1/4 |
| Overall Length (OAL) | 2 |
| Image | Sku | Price | Cutting Edge Diameter (CED) | Cutting Edge Length (CEL) | Shank Diameter | Overall Length (OAL) |
|---|---|---|---|---|---|---|
|
5404 |
$41.67
|
1/16 | 1/4 | 1/8 | 1 1/2 |
|
5410 |
$32.92
|
1/8 | 1/2 | 1/4 | 2 |
|
5410L |
$35.98
|
1/8 | 1/2 | 1/4 | 2 |
|
5412 |
$45.84
|
||||
|
5412L |
$64.86
|
||||
|
5415 |
$31.83
|
5/32 | 5/8 | 1/4 | 2 |
|
5415L |
$36.27
|
5/32 | 5/8 | 1/4 | 2 |
|
5420 |
$28.81
|
3/16 | 5/8 | 1/4 | 2 |
|
5420L |
$32.97
|
3/16 | 5/8 | 1/4 | 2 |
|
5422 |
$46.02
|
||||
|
5422L |
$49.33
|
3/16 | 1 | 1/4 | 4 |
|
5430 |
$33.96
|
1/4 | 3/8 | 1/4 | 2 1/2 |
|
5433L |
$37.55
|
1/4 | 3/4 | 1/4 | 2 1/2 |
|
5434 |
$37.27
|
1/4 | 1 | 1/4 | 2 1/2 |
|
5435 |
$40.38
|
1/4 | 3/4 | 1/4 | 3 1/4 |
|
5437 |
$42.53
|
1/4 | 1 1/4 | 1/4 | 3 1/4 |
|
|
5440 |
$46.57
|
1/4 | 1 | 1/4 | 4 |
|
5443 |
$64.04
|
3/8 | 1 1/4 | 3/8 | 3 |
|
5453 |
$95.02
|
1/2 | 1 1/4 | 1/2 | 3 |
|
5453L |
$99.45
|
1/2 | 1 1/4 | 1/2 | 3 |
|
5454 |
$112.67
|
1/2 | 1 3/4 | 1/2 | 4 |
|
5454L |
$116.55
|
1/2 | 1 3/4 | 1/2 | 4 |
|
5409 |
$31.29
|
1/8 | 1/4 | 1/4 | 2 |
|
5460 |
$36.85
|
3mm | 8mm | 6mm | 64mm |
|
5418 |
$28.81
|
3/16 | 3/8 | 1/4 | 2 |
|
5460L |
$40.44
|
3mm | 8mm | 6mm | 64mm |
|
5470 |
$36.03
|
4mm | 16mm | 6mm | 64mm |
|
5470L |
$39.62
|
4mm | 16mm | 6mm | 64mm |
|
5475 |
$36.03
|
5mm | 20mm | 6mm | 64mm |
|
5475L |
$39.62
|
5mm | 20mm | 6mm | 64mm |
|
5480 |
$36.03
|
6mm | 25mm | 6mm | 64mm |
|
5480L |
$39.62
|
6mm | 25mm | 6mm | 64mm |
|
5485 |
$51.16
|
8mm | 25mm | 8mm | 64mm |
|
5490 |
$70.39
|
10mm | 30mm | 10mm | 76mm |
|
5433 |
$35.18
|
1/4 | 3/4 | 1/4 | 2 1/2 |
