8085 BODY W/ IVB-20 INSERT

$948.24

1 - 8085 - 30°/60° Integrated HSK 63F V-Groove Tool

1 - IVB-20 - Insert

1 - 7000W - T15 Torx Driver Wrench

1 - 67115 - 4mm Button Head Screw

Availability:

In stock

Details

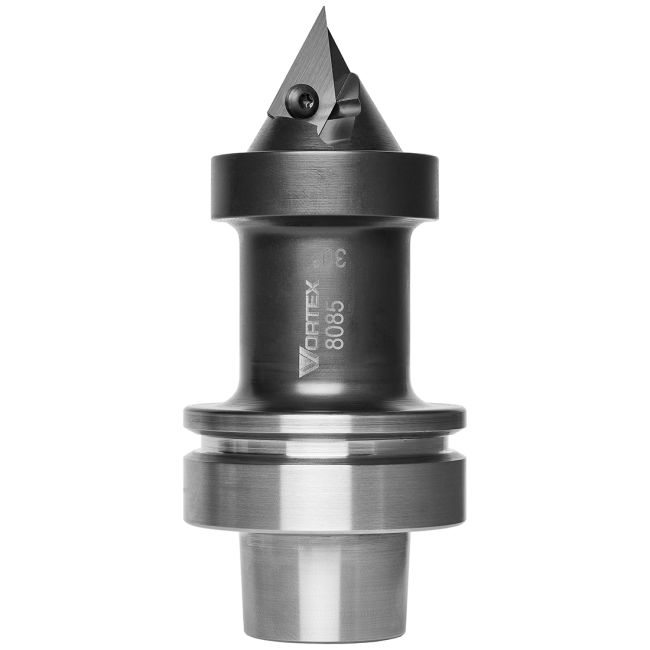

HSK63F integrated V-Groove Cutter

Vortex now offers the reliable performance of our 7000 series V-groove in an Integrated tool design. This design eliminates the need to purchase a dedicated collet and toolholder for a shank style tool. It also provides greater accuracy for precise V-groove cuts. The machined seat pocket increases location surfaces for easy insert replacement and assures repeatability over other designs. The tool body comes with the necessary insert, screws and wrench.

Product Drawing and Dimensions (PDF)

More Information

More Information
SKU	8085-KIT
Shank Diameter	3/4
Inc. Angle (deg.)	120
Depth Of Cut	.911
Angle	30
Diameter	3.437
Insert #	IVB-20
Taper	HSK63F

Sku	Price	Shank Diameter	Inc. Angle (deg.)	Depth Of Cut	Angle	Diameter	Insert #	Taper
IVB-10	$39.32
IVB-20	$39.32
IVB-40	$26.28
IVB-50	$28.38
7060-KIT	$401.63	3/4	90	1	45	2.25	IVB-40
67115	$5.28
7000W	$8.26
IVB-30	$24.46
T15TH	$74.69
7050-KIT	$378.30	1/2	90	.730	45	1.50	IVB-30
7055-KIT	$395.81	1/2	90	1	45	2.25	IVB-40
7065-KIT	$413.28	3/4	90	1.25	45	3	IVB-50
7075-KIT	$378.34	1/2	45	.625	22.5	2	IVB-10
7080-KIT	$407.44	1/2	45	1	22.5	2	IVB-20
7085-KIT	$407.44	1/2	60	.966	30	2	IVB-20
7090-KIT	$458.89	3/4	120	.911	60	3.437	IVB-50
8065-KIT	$954.06	3/4	90	1.25	45	3	IVB-50	HSK63F
8080-KIT	$948.24	1/2	45	1	22.5	2	IVB-20	HSK63F
8085-KIT	$948.24	3/4	120	.911	30	3.437	IVB-20	HSK63F
8090-KIT	$999.69		120	.911	60	3.437	IVB-50	HSK63F
7070-KIT	$517.07	3/4	90	1.379	45	2.758	INS-7070
7086-KIT	$513.79	3/4	60	1.602	30	2	INS--7086
