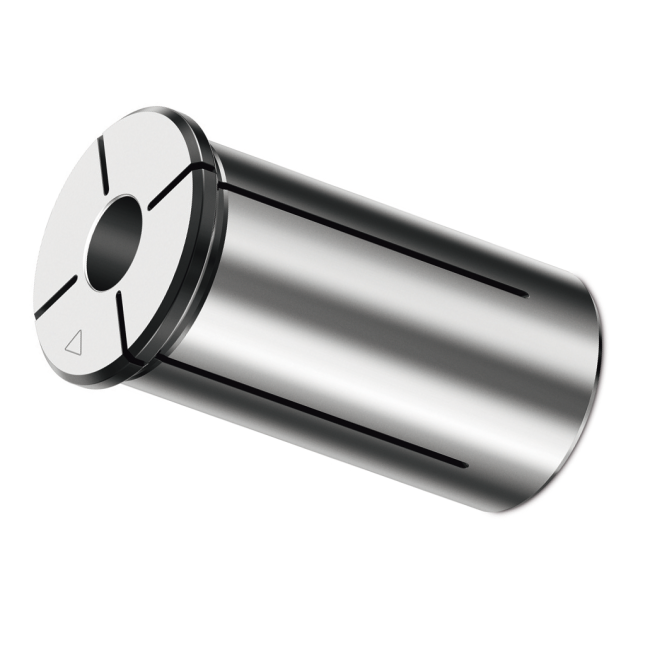

HS 3/4" / 3/16" REDUCTION SLEEVE

$166.64

ETP Reduction Sleeves – Precision Tool Adaptation

ETP reduction sleeves allow you to adapt a variety of shank diameters to fit securely in your ETP hydraulic toolholders—without sacrificing precision or performance. Manufactured to exacting tolerances, these sleeves ensure perfect concentricity and optimal clamping force, maintaining the high accuracy required for CNC wood machining applications.

Key Benefits:

Flexible Tooling Options – Use multiple shank sizes with the same toolholder.
High Precision Fit – Maintains runout accuracy for improved cut quality.
Quick Changeover – Simplifies tool changes and setup adjustments.
Durable Construction – Engineered for long service life under demanding conditions.

By combining ETP hydraulic toolholders with ETP reduction sleeves, you gain maximum versatility without compromising on finish quality, vibration control, or tool life.

Availability:

Out of stock

Details

HS 3/4" / 3/16" REDUCTION SLEEVE

More Information

More Information
SKU	R1919.04762
D1	3/16
D2	3/4
D3	25 mm
L1	50 mm
L2	28 mm
L3	4 mm

Sku	Price	D1	D2	D3	L1	L2	L3
R1913.03182	$148.01	1/8	1/2	16 mm	40 mm	29 mm	4 mm
R1913.04762	$148.01	3/16	1/2	16 mm	40 mm	29 mm	4 mm
R1913.06352	$148.01	1/4	1/2	16 mm	40 mm	36 mm	4 mm
R1913.07942	$150.08	5/16	1/2	16 mm	40 mm	37 mm	4 mm
R1913.09522	$166.64	3/8	1/2	16 mm	40 mm	40 mm	4 mm
R1919.04762	$166.64	3/16	3/4	25 mm	50 mm	28 mm	4 mm
R1919.06352	$150.08	1/4	3/4	25 mm	50 mm	36 mm	4 mm
R1919.06353	$216.32	1/4	3/4	25 mm	50 mm	36 mm	4 mm
R1919.07942	$166.64	5/16	3/4	25 mm	50 mm	37 mm	4 mm
R1919.11112	$166.64	7/16	3/4	25 mm	50 mm	40 mm	4 mm
R1919.14292	$182.16	9/16	3/4	25 mm	50 mm	45 mm	4 mm
R1919.15882	$166.64	5/8	3/4	25 mm	50 mm	48 mm	4 mm
R1919.09522	$150.08	3/8	3/4	25 mm	50 mm	36 mm	4 mm
R1919.12702	$150.08	1/2	3/4	25 mm	50 mm	45 mm	4 mm
